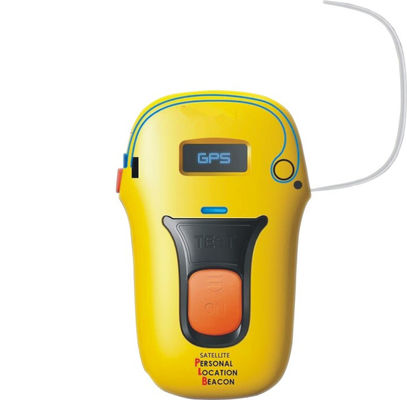

Cari Penyelamatan Global Maritime Distress Dan Sistem Keamanan

Name: Cari Penyelamatan Global Maritime Distress Dan Sistem Keamanan
Brand: QINGDAO NAVI OPTICS TECHNOLOGY CO.,LTD
SKU: Cari dan selamatkan harta karun VSA8
Price: 10,250.00 USD
Availability: InStock

Atribut Utama

Nama merek: THUNDSEA

Nomor Model: Cari dan selamatkan harta karun VSA8

Tempat Asal: Qingdao

Sertifikasi: CCS

Jumlah Pesanan Minimum: Satu set

Kemampuan Pasokan: 30 set per bulan

Waktu Pengiriman: 15 hari

Ketentuan Pembayaran: L / C, T / T

Kemasan Standar: kardus

Ringkasan Produk

Cari dan selamatkan harta karun VSA8 Antena Air-Sensitivitas Penerima Tinggi Spesifikasi Baterai Baterai lithium, 9V / 1.5AH, umur 8 tahun Waktu kinerja ＞ 24j @ －20 ℃ Antena Monopole vertikal Antarmuka pemrograman Inframerah dua arah.940nm LCD 128 * 64, Kisi Cara aktivasi Manual / oleh air Dukungan ...

Atribut Kustom Produk

Menyoroti

Cari sistem manajemen keselamatan kapal

,

Rescue safe kembali ke sistem pelabuhan

,

sistem manajemen kapal sms tahan air

Baterai:

Baterai lithium, 9V / 1.5AH, umur 8 tahun

Waktu kinerja:

＞ 24j @ －20 ℃

Antena:

Monopole vertikal

Antarmuka pemrograman:

Inframerah dua arah.940nm

LCD:

128 * 64, Kisi

Cara aktivasi:

Manual / oleh air

Dukungan persetujuan:

MSG1.MSG14

propertiesWater-proof:

5 m / 10 mnt

Ukuran:

90mm × 49mm × 30mm, 116g

Temp bekerja:

－20 ℃ ~ 50 ℃

Suhu penyimpanan:

－40 ℃ ~ 70 ℃

Deskripsi Produk

Cari dan selamatkan harta karun VSA8 Antena Air-Sensitivitas Penerima Tinggi

Spesifikasi

Baterai	Baterai lithium, 9V / 1.5AH, umur 8 tahun
Waktu kinerja	＞ 24j @ －20 ℃
Antena	Monopole vertikal
Antarmuka pemrograman	Inframerah dua arah.940nm
LCD	128 * 64, Kisi
Cara aktivasi	Manual / oleh air
Dukungan persetujuan	MSG1.MSG14
Sifat tahan air	5 m / 10 mnt
Ukuran	90mm × 49mm × 30mm, 116g
Temp bekerja	－20 ℃ ~ 50 ℃
Suhu penyimpanan	－40 ℃ ~ 70 ℃

AIS Transmitte

◆ Frekuensi output: 161.975 MHz, 162.025 MHz

◆ Daya keluaran: 2W (33dBm) ± 1.5dB

◆ Kecepatan data: 9600bps

◆ Bandwidth modulasi: 25 Khz

◆ Modulasi mode: GMSK, FM

◆ Ulangi siklus: 1 menit

◆ Jarak aksi: 7km (Khas)

Penerima posisi satelit (GNSS):

◆ Sistem penentuan posisi satelit: GPS, satelit Beidou (kompas 2)

◆ Saluran penerima: 56 saluran, L1 + B1

◆ Antena Penerima: piring keramik built-in

◆ Menerima Sensitivitas: -165dBm

◆ Kesalahan posisi: 2.5m

Cari Penyelamatan Global Maritime Distress Dan Sistem Keamanan 0
