Model FG-900M Tactical-grade Fiber-optic Compass Positioning System High Reliability

Model FG-900M Tactical-grade Fiber-optic Compass Positioning System High Reliability
Model FG-900M Tactical-grade Fiber-optic Compass Positioning System High Reliability

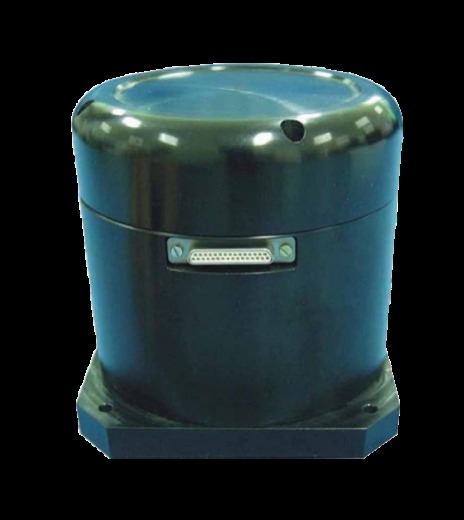

Gambar besar :  Model FG-900M Tactical-grade Fiber-optic Compass Positioning System High Reliability

Detail produk:
Place of Origin: China
Nama merek: NAVI OPTICS
Sertifikasi: CCS
Model Number: FG-900M
Dokumen: FG-900M tactical-grade fibe...em.pdf
Syarat-syarat pembayaran & pengiriman:
Minimum Order Quantity: one set
Packaging Details: Carton box
Payment Terms: T/T
Kontak

Model FG-900M Tactical-grade Fiber-optic Compass Positioning System High Reliability

Deskripsi

Model FG-900M Tactical-grade Fiber-optic Compass Positioning System High Reliability


Introduction

The tactical FOG inertial measurement unit which has the functions of angular rate and acceleration input/output, error compensation, etc. is composed of inetial sensor assembly, electric circuits and chassis.It can provide angular rate and acceleration for flight control system and stabilized control system, which is suite for short distance guided missiles, UAVs, antenna stable reference system, guided rocket reconstruction, etc.


Characteristics

♦ Adopt three axis closed-loop FOG as the core component

♦ Low cost, small volume, light weight

♦ Low power consumption

♦ High reliability


Application

Short distance guided missiles, Guided rockets.UAVs, Antenna stable reference system etc.


Set-up Time
≤1min
Accuracy Gyro bias stability 0.5° /h(RMS )
Gyro bias repeatability 0.5° /h(RMS )
Accelerometer bias stability 0.5° /h(RMS )
Accelerometer bias repeatability 0.5° /h(RMS )
Dynamic Range Angular rate +500°/s
Acceleration ±30g
Operation Requirement Temperature -40~+60℃
Shock half-sine wave) 20g,11ms
Vibration amplitude of vibration(peak value) 6.0g
frequency domain 10~2000 Hz
sweep rate ≤1oct/min
MTBF 5000h

Power Supply/Consumption ±28VDC/10W

Interface RS422

Dimension Ф90×102mm

Weight <1.2kg
