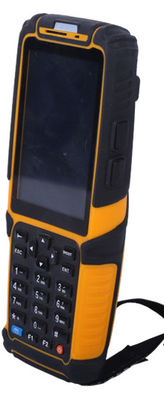

Dual Phase VIR8 Digital Demodulation Beacon Tester ukuran kecil ringan konsumsi daya rendah

Name: Dual Phase VIR8 Digital Demodulation Beacon Tester ukuran kecil ringan konsumsi daya rendah
Brand: QINGDAO NAVI OPTICS TECHNOLOGY CO.,LTD
SKU: VIR8
Price: 10,250.00 USD
Availability: InStock

Atribut Utama

Nama merek: THUNDSEA

Nomor Model: VIR8

Tempat Asal: Qingdao

Sertifikasi: CCS

Jumlah Pesanan Minimum: Satu set

Kemampuan Pasokan: 30 set per bulan

Waktu Pengiriman: 15 hari

Ketentuan Pembayaran: L / C, T / T

Kemasan Standar: kardus

Ringkasan Produk

Dual Phase VIR8 Digital Demodulation Beacon Tester ukuran kecil ringan konsumsi daya rendah Fungsi Beacon Tester adalah perangkat untuk menguji parameter teknis EPIRB. Berbagai informasi dapat diukur dan ditampilkan pada Penguji, seperti frekuensi sinyal input, daya, kode, dll. Dapat digunakan ...

Atribut Kustom Produk

Menyoroti

Penguji Beacon fase ganda

,

penguji epirb VIR8

,

penguji epirb 15dBm

Frekuensi Input:

406.00 ~ 406.06MHz, 121.5MHz

Daya input:

﹣40dBm ~ 15dBm @ 406MHz, ﹣40dBm ~ 15dBm @ 121.5MHz

Pengukuran presisi frekuensi 406MHz:

Akurasi ± 50Hz

121.5MHz presisi pengukuran frekuensi:

Akurasi ± 300Hz

406MHz:

Demodulasi kode L fase ganda

Kapasitas penyimpanan data:

2G

layar LCD:

Resolusi 320 * 240

Antena:

Omnidirectional dan tipe detatchable

Waktu pengoperasian baterai:

5 jam

Suhu kerja:

﹣10 ℃ ~ 50 ℃

Deskripsi Produk

Dual Phase VIR8 Digital Demodulation Beacon Tester ukuran kecil ringan konsumsi daya rendah

Fungsi

Beacon Tester adalah perangkat untuk menguji parameter teknis EPIRB.

Berbagai informasi dapat diukur dan ditampilkan pada Penguji, seperti frekuensi sinyal input,

daya, kode, dll. Dapat digunakan secara luas dalam pengujian selama produksi EPIRB, inspeksi pabrik, perbaikan dan

pemeliharaan, dan penilaian tahunan dll.

fitur

◆ Kinerja tinggi: menggunakan teknologi demodulasi digital terbaru, ukuran kecil, ringan, konsumsi daya rendah.

Antarmuka yang ramah: Berdasarkan antarmuka tampilan Cina yang dikembangkan oleh Android.

◆ Mengadopsi struktur handset industri: pengoperasian yang mudah, mudah dibawa, Tingkat perlindungan tinggi, sangat cocok untuk pengoperasian luar ruangan di pelabuhan, dermaga, dek kapal, dll.

Spesifikasi

Frekuensi masukan	406.00 ~ 406.06MHz, 121.5MHz
Daya masukan	﹣40dBm ~ 15dBm @ 406MHz, ﹣40dBm ~ 15dBm @ 121.5MHz
Frekuensi 406MHz presisi pengukuran	Akurasi ± 50Hz
Frekuensi 121.5MHz presisi pengukuran	Akurasi ± 300Hz
406MHz	Demodulasi kode fase ganda L
Kapasitas penyimpanan data	2G
layar LCD	Resolusi 320 * 240
Antena	Jenis omnidirectional dan detatchable
Waktu pengoperasian baterai	5 jam
Suhu kerja	﹣10 ℃ ~ 50 ℃

Dual Phase VIR8 Digital Demodulation Beacon Tester ukuran kecil ringan konsumsi daya rendah 0
