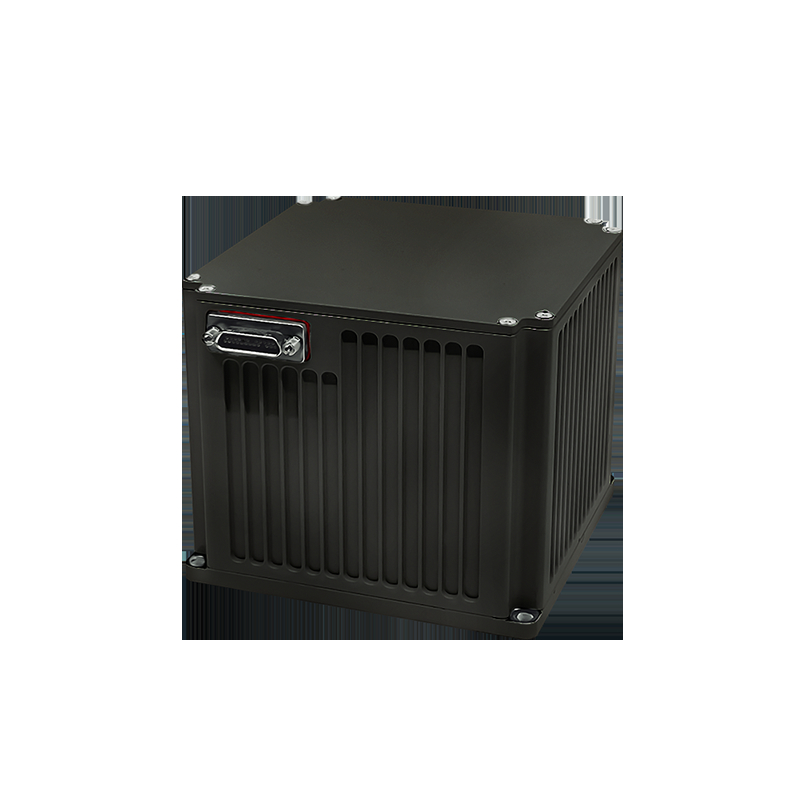

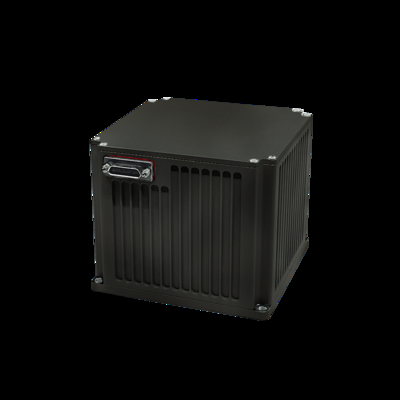

Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions
Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Gambar besar :  Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Detail produk:
Tempat asal: Cina
Nama merek: NAVI OPTICS
Sertifikasi: CCS
Nomor model: TDF71IMU0
Dokumen: TDF71IMU0 Fiber Optic Inert...it.pdf
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: Optik Navi
Kemasan rincian: Kotak karton
Syarat-syarat pembayaran: L/c, t/t
Kontak

Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions

Deskripsi
Nol Bias Stability (100s): 0,01 °/jam Nol Bias Stability (10s): 0,03 °/jam
Suhu variabel nol stabilitas: 0,05 °/jam Faktor Skala Suhu Penuh: ≤150ppm
Koefisien berjalan kaki acak koefisien berjalan: 0,002 °/√h Rentang input: 400 °/s

Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions


♦ Overview

Fiber optic inertial units have the advantages of small size, light weight, low power consumption, and high accuracy. They can be used to design pure strapdown systems, meet the needs of new unmanned platforms, water/torpedo weapons, as well as land, airborne, and missile weapon platforms for small size and high-precision inertial unit equipment, and have dynamic measurement functions for carrier angular and linear motion information.



♦ Performance

Project Content Index Notes
Performance indicators of gyroscope
Zero bias indicator Zero bias stability (100s) 0.01°/h
Zero bias stability (10s) 0.03°/h
Variable temperature zero bias stability 0.05°/h
Scale Factor Full temperature scale factor ≤150ppm
Other indicators Random walk coefficient 0.002°/√h
Input range 400°/s
Performance indicators of accelerometer
Deviation index Deviation monthly comprehensive error 20μg
Zero bias indicator Zero bias temperature sensitivity 20μg/℃
Scale Factor Scale factor monthly comprehensive error 20ppm
Scale factor temperature sensitivity 20ppm/℃
Range indicator Input range ±20g
Whole machine characteristics
Environmental performance indicators Operation temperature -40℃～60℃
Storage temperature -45℃～70℃
General requirements Power supply 18～36V(DC)
Stable power consumption ≤15W Startup power consumption ≤ 25W



♦ Electrical interfaces

Pin Connectivity Signal name Signal characteristics
1,2 External power supply PCS power supply positive 24V
3,4
PCS power supply ground Power Ground
5 200Hz signal output IMU_TX1+ IMU data output positive
6
IMU_TX1- IMU data output negative
9 Synchronization signal IMU_SYN+ IMU synchronization signal positive
10
IMU_SYN- IMU synchronization signal negative



♦ Structural appearance and dimensions


Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions 0


Label:

fiber optic inertial measurement unit,

small fiber optic inertial unit,

low power IMU sensor
