TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions for Small Size and High-Precision Inertial Unit Equipment

TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions for Small Size and High-Precision Inertial Unit Equipment
TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions for Small Size and High-Precision Inertial Unit Equipment

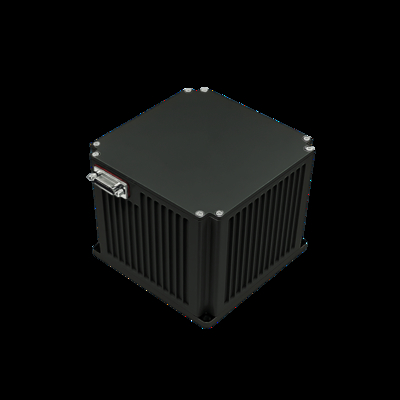

Gambar besar :  TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions for Small Size and High-Precision Inertial Unit Equipment

Detail produk:
Tempat asal: CINA
Nama merek: NAVI OPTICS
Sertifikasi: CCS
Nomor model: TDF71IMU0
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: Optik Navi
Kemasan rincian: Kotak karton
Syarat-syarat pembayaran: L/c, t/t
Kontak

TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions for Small Size and High-Precision Inertial Unit Equipment

Deskripsi
Rentang input: 400 °/s Nol Bias Stability (100s): 0,01 °/jam
Faktor Skala Suhu Penuh: ≤150ppm Koefisien berjalan kaki acak koefisien berjalan: 0,002 °/√h
Nol Bias Stability (10s): 0,03 °/jam Suhu variabel nol stabilitas: 0,05 °/jam
Menyoroti:

fiber optic inertial measurement unit

,

small size inertial unit

,

high-precision dynamic measurement IMU

Light Weight High Accuracy TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions
Overview

Fiber optic inertial units offer several advantages, including compact size, lightweight design, low power consumption, and high accuracy. These features make them ideal for designing pure strapdown systems that cater to the requirements of new unmanned platforms, underwater or torpedo weapons, as well as land, airborne, and missile weapon systems. Their small size and precision make them suitable for high-performance inertial unit applications, providing dynamic measurement capabilities for angular and linear motion information of various carriers.

Performance
Project Content Index Notes
Performance indicators of gyroscope
Zero bias indicator Zero bias stability (100s) 0.01°/h
Zero bias stability (10s) 0.03°/h
Variable temperature zero bias stability 0.05°/h
Scale Factor Full temperature scale factor ≤150ppm
Other indicators Random walk coefficient 0.002°/√h
Input range 400°/s
Performance indicators of accelerometer
Deviation index Deviation monthly comprehensive error 20μg
Zero bias indicator Zero bias temperature sensitivity 20μg/℃
Scale Factor Scale factor monthly comprehensive error 20ppm
Scale factor temperature sensitivity 20ppm/℃
Range indicator Input range ±20g
Whole machine characteristics
Environmental performance indicators Operation temperature -40℃～60℃
Storage temperature -45℃～70℃
General requirements Power supply 18～36V(DC)
Stable power consumption ≤15W Startup power consumption ≤ 25W
Electrical interfaces
Pin Connectivity Signal name Signal characteristics
1,2 External power supply PCS power supply positive 24V
3,4
PCS power supply ground Power Ground
5 200Hz signal output IMU_TX1+ IMU data output positive
6
IMU_TX1- IMU data output negative
9 Synchronization signal IMU_SYN+ IMU synchronization signal positive
10
IMU_SYN- IMU synchronization signal negative
Structural appearance and dimensions
TDF71IMU0 Fiber Optic Inertial Unit Dynamic Measurement Functions for Small Size and High-Precision Inertial Unit Equipment 0
