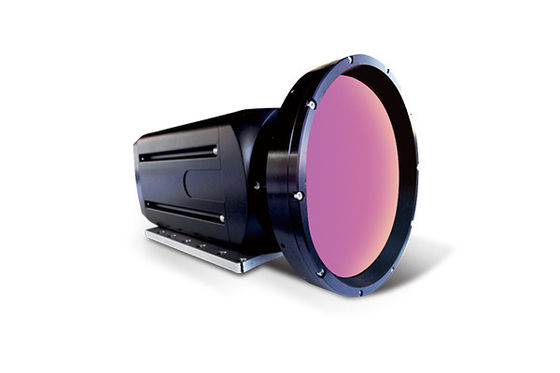

86-860mm F5.5 Zoom Berkelanjutan MWIR LEO Detector Sistem Kamera Pencitraan Termal

Name: 86-860mm F5.5 Zoom Berkelanjutan MWIR LEO Detector Sistem Kamera Pencitraan Termal
Brand: QINGDAO NAVI OPTICS TECHNOLOGY CO.,LTD
SKU: FCTL860ZB
Price: 10,250.00 USD
Availability: InStock

Atribut Utama

Nama merek: thundsea

Nomor Model: FCTL860ZB

Tempat Asal: Cina

Sertifikasi: CCS

Jumlah Pesanan Minimum: Satu set

Kemampuan Pasokan: 30 set per bulan

Waktu Pengiriman: 15 hari

Ketentuan Pembayaran: L / C, T / T

Kemasan Standar: kardus

Ringkasan Produk

86-860mm F5.5 Continuous Zoom MWIR LEO Detector Sistem Kamera Pencitraan Termal Sistem Pencitraan Termal 86-860mm adalah pencitraan termal berpendingin MWIR canggih yang digunakan untuk deteksi jarak jauh.Core yang didinginkan dengan MWIR yang sangat sensitif dengan resolusi 640x512 dapat menghasilk...

Atribut Kustom Produk

Menyoroti

Sistem Kamera Pencitraan Termal 860mm

,

Sistem Kamera Pencitraan Termal F5.5 MWIR

,

Sistem Kamera Pencitraan Termal 86mm

Detektor:

MCT 640 × 512

Rentang spektral:

3,7 ~ 4,8μm

Pitch Pixel:

15μm

Metode pendinginan:

Kulkas Stirling

Focal length:

86 ㎜～ 860 ㎜ zoom berkelanjutan

Frekuensi Bingkai:

30Hz

NETD:

≤25mk @ 25 ℃

Suhu OperasionalSuhu Operasional:

-30 ℃ ~ 55 ℃

Deskripsi Produk

86-860mm F5.5 Continuous Zoom MWIR LEO Detector Sistem Kamera Pencitraan Termal

Sistem Pencitraan Termal 86-860mm adalah pencitraan termal berpendingin MWIR canggih yang digunakan untuk deteksi jarak jauh.Core yang didinginkan dengan MWIR yang sangat sensitif dengan resolusi 640x512 dapat menghasilkan gambar yang sangat jernih dengan resolusi yang sangat tinggi;lensa inframerah zoom kontinu 86mm 860mm yang digunakan dalam produk dapat secara efektif membedakan target seperti orang, kendaraan, dan kapal dalam jarak jauh.

86-860mm F5.5 Zoom Berkelanjutan MWIR LEO Detector Sistem Kamera Pencitraan Termal 0

Gambar1 Gambar pencitraan termal

Spesifikasi teknis

1 Detektor

Detektor MCT 640 × 512

Rentang spektrum 3,7 ~ 4,8μm

Jarak piksel 15μm

Metode pendinginan Kulkas Stirling

2 Lensa

Panjang fokus 86 860 zoom terus menerus

3 Kinerja

Kisaran FOV 0,64°(H) ×0,51°(V) hingga 6,4°(H) ×5,1°(V)

Waktu pendinginan 8 menit dalam suhu normal

Video Output standar format PAL sinyal video analog

Frekuensi Bingkai 30Hz

NETD 25mk@25℃

Sumber daya DC 24 ~ 32 V, dengan perlindungan polaritas terbalik daya

Konsumsi daya 12W @ 25℃, kondisi stabil

30W@25℃, puncak start-up

Suhu Operasi -30 ~ 55

Suhu Penyimpanan -40 ~ 70

4 Perintah dan Kontrol

Kontrol komunikasi RS232/RS422

Koreksi manual koreksi/koreksi latar belakang

Kontrol polaritas sakelar panas putih / hitam

Zoom Elektronik ×2/×4 zoom elektronik

Peningkatan gambar Ya

Tampilan silang Ya

Pembalikan gambar Horizontal/vertikal
