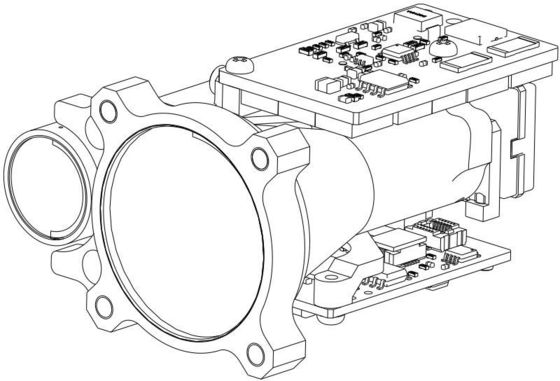

Modul Pengukuran Jarak Laser Keselamatan Mata Manusia RL4000

Name: Modul Pengukuran Jarak Laser Keselamatan Mata Manusia RL4000
Brand: QINGDAO NAVI OPTICS TECHNOLOGY CO.,LTD
SKU: RL4000
Price: 10,250.00 USD
Availability: InStock

Atribut Utama

Nama merek: Navioptics

Nomor Model: RL4000

Jumlah Pesanan Minimum: 1 buah

Waktu Pengiriman: 15 hari kerja

Ketentuan Pembayaran: T/T

Kemasan Standar: kardus

Ringkasan Produk

1Pengamatan Produk RL4000 adalah produk keamanan mata manusia Kelas 1/1M. Produk ini mengadopsi rentang pulsa tunggal, dengan jangkauan maksimum ≥5,6Km; memiliki antarmuka listrik UART,dan menyediakan perangkat lunak pengujian komputer atas, set perintah dan protokol komunikasi, yang nyaman bagi ...

Atribut Kustom Produk

Menyoroti

Keamanan Mata Manusia Pengukuran Jarak Laser

,

RL4000

,

Modul Pengukuran Jarak Laser

Keamanan/tingkat mata manusia:

Kelas1/1M

Panjang Gelombang Laser:

1535±5nm

Menerima bukaan:

Φ25 mm

Bukaan emisi:

Φ12 mm

Menerima bidang pandang:

4.21 mrad

Sudut divergensi balok:

0,3±0,05 mrad

Rentang pengukuran maksimum:

Pesawat tak berawak ≥1700

Rentang pengukuran minimum:

50m

Deskripsi Produk

1Pengamatan Produk

RL4000 adalah produk keamanan mata manusia Kelas 1/1M. Produk ini mengadopsi rentang pulsa tunggal, dengan jangkauan maksimum ≥5,6Km; memiliki antarmuka listrik UART,dan menyediakan perangkat lunak pengujian komputer atas, set perintah dan protokol komunikasi, yang nyaman bagi pengguna untuk melakukan pengembangan sekunder. Dengan berat ringan, ukuran kecil dan kinerja yang stabil, produk dapat digunakan di tangan,perangkat optoelektronik yang dipasang pada kendaraan dan pod.

1Parameter kinerja produk

S/N	Nama barang		Indeks kinerja
0	Model Produk		LR4000
1	Keamanan mata manusia/tingkat		Kelas 1/1M
2	Panjang gelombang laser		1535±5nm
3	Aperture penerima		Φ25 mm
4	Aperture emisi		Φ12 mm
5	Penerima bidang pandang		4.21 mrad
6	Sudut divergensi balok		00,3 ± 0,05 mrad
7	Jangkauan pengukuran maksimum	Target besar	≥ 5600¹⁾
		kendaraan	≥ 4800¹⁾
		manusia	≥3200¹⁾
		Pesawat tak berawak	≥1700¹⁾
8	Jangkauan pengukuran minimum		50 m
9	Frekuensi pengukuran		1 ~ 10 Hz
10	Keakuratan pengukuran jarak		± 1 m
11	Resolusi jarak		≤ 30 m
12	Tingkat kuasi-pengukuran		≥ 98
13	Tingkat alarm palsu		≤ 1
14	Jumlah deteksi multi-target		3 (bilangan maksimum)
15	Antarmuka listrik		A1257WR-S-6P
16	Tegangan catu daya		DC 4,516 V
17	Konsumsi daya dalam keadaan siaga		≤ 1 mW

18	Konsumsi daya rata-rata	≤ 4 W
19	Konsumsi daya puncak	≤14 W @ 12 V
20	Berat badan	≤ 75 g
21	Dimensi (L × W × H)	65×48×32 mm
22	Suhu kerja	-40 ̊+65 °C
23	Suhu penyimpanan	-55 ̊+75 °C
24	Getaran	Tes getaran integritas batas rendah umum (GJB150.16A-2009 Gambar C.17)
25	Kejutan	75g/6ms
26	Logika jangkauan	Target pertama dan terakhir, jarak target multi, jarak pilihan lulus
27	Antarmuka data	UART
28	Isolasi listrik	Isolasi tanah PSU, tanah komunikasi dan tanah struktur
29	Tingkat nasionalisasi	Produksi nasional
30	Keandalan	MTBF ≥ 1500h
31	Stabilitas sumbu optik	≤ 0,05 mrad
32	sumbu optik dan dasar instalasi derajat non-vertikal	≤ 0,5 mrad

Catatan.

1)Ukuran target model 2,3m × 2,3m, ukuran target tipe manusia 0,5m × 1,7m, ukuran target tipe UAV 0,2m × 0,3m, reflektivitas 30; visibilitas ≥ 12km.
