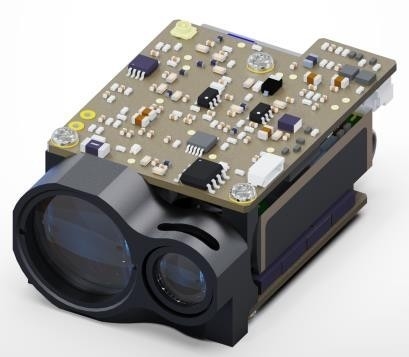

1 -10 Hz Keamanan Mata Manusia Modul Pengukuran Jarak Laser RL2000

Name: 1 -10 Hz Keamanan Mata Manusia Modul Pengukuran Jarak Laser RL2000
Brand: QINGDAO NAVI OPTICS TECHNOLOGY CO.,LTD
SKU: RL2000
Price: 10,250.00 USD
Availability: InStock

Atribut Utama

Nama merek: Navioptics

Nomor Model: RL2000

Jumlah Pesanan Minimum: 1

Waktu Pengiriman: 15 hari kerja

Ketentuan Pembayaran: T/T

Kemasan Standar: kardus

Ringkasan Produk

1Ikhtisar Produk Modul jangkauan laser keselamatan mata manusia RL 2000 adalah produk keselamatan mata manusia kelas 1.Produk ini adalah pengukuran rentang pulsa tunggal dengan jangkauan maksimum ≥3.000m, dengan antarmuka listrik UART(TTL_3.3V), sambil menyediakan perangkat lunak pengujian komputer ...

Atribut Kustom Produk

Menyoroti

Modul Pengukuran Jarak Laser 1 -10 Hz

Keamanan Mata Manusia Pengukuran Jarak Laser

Tingkat keamanan mata manusia:

Kelas1/1M

Panjang Gelombang Laser:

1535±5 nm

Sudut divergensi laser:

~0,6 juta

Menerima bukaan:

Φ16,5 mm

Menerima bidang pandang:

~4,9 mrad/ 0,3°

Rentang pengukuran maksimum:

≥3000 m; ≥3000 m; to the car ≥2500 m; ke mobil ≥2500 m; to the human

Rentang pengukuran minimum:

15 m

Akurasi pengukuran jarak:

±1 m

Frekuensi pengukuran:

1~10 Hz

Resolusi jarak:

≤20 m

Deskripsi Produk

1Ikhtisar Produk

Modul jangkauan laser keselamatan mata manusia RL 2000 adalah produk keselamatan mata manusia kelas 1.Produk ini adalah pengukuran rentang pulsa tunggal dengan jangkauan maksimum ≥3.000m, dengan antarmuka listrik UART(TTL_3.3V), sambil menyediakan perangkat lunak pengujian komputer bagian atas, set perintah, dan protokol komunikasi, yang nyaman untuk pengembangan sekunder.Produk ini memiliki karakteristik ukuran kecil, ringan, kinerja stabil, ketahanan benturan tinggi, dan pelokalan penuh.

2Parameter kinerja

S/N Nama barang Indeks kinerja

1 Tingkat keamanan mata manusia Kelas1/1M

2 Panjang gelombang laser 1535±5 nm

3 Sudut divergensi laser ~0,6 juta

4 Menerima bukaan Φ16,5 mm

5 Menerima bidang pandang ~4,9 mrad/ 0,3°

6 Rentang pengukuran maksimum ≥3000 m;ke mobil ≥2500 m;ke manusia ≥1500 m;ke UAV ≥600 m;¹⁾

7 Rentang pengukuran minimum 15 m

8 Akurasi pengukuran jarak ±1 m

9 Frekuensi pengukuran 1~10 Hz

10 Resolusi jarak ≤20 m

11 Resolusi sudut ≤1 jt

12 Tingkat kuasi-pengukuran ≥98%

13 Tingkat alarm palsu ≤1%

14 Deteksi multi-target 3 (jumlah maksimum target)

15 Antarmuka data UART (TTL_3.3V)

16 Tegangan catu daya DC 4.5~16 V

17 Konsumsi daya siaga ≤1 mW

18 Konsumsi daya puncak ≤7 W @12 V

19 Berat 32±1g

20 Dimensi (P×L×T) 48×30,5×21 mm

21 Suhu Operasional -40 ~ +70 ℃

22 Suhu penyimpanan -55 ~ +75 ℃

23 Dampak 1 200 g, 1 ms

24 Getaran 5 hingga 50 hingga 5 Hz, 1 oktaf/mnt, 2,5 g

25 Guncangan suhu +70 ℃, -50 ℃

26 Tingkat nasionalisasi Produksi nasional

27 Keandalan MTBF ≥ 1 500 jam

28 Fungsi Target pertama dan terakhir/rentang multi-target/pass pemilihan jarak/kontrol PSU eksternal/waktu akumulasi laser

29 Waktu merespon ≤ 950 ms.

Catatan:1)Ukuran target model: 2,3×2,3 m;ukuran target humanoid: 1,7×0,5 m;Ukuran target UAV: 0,3×0,2 m;reflektifitas 30 %, jarak pandang ≥ 8 Km.
